Kiwi Milsim Feed Mechanism

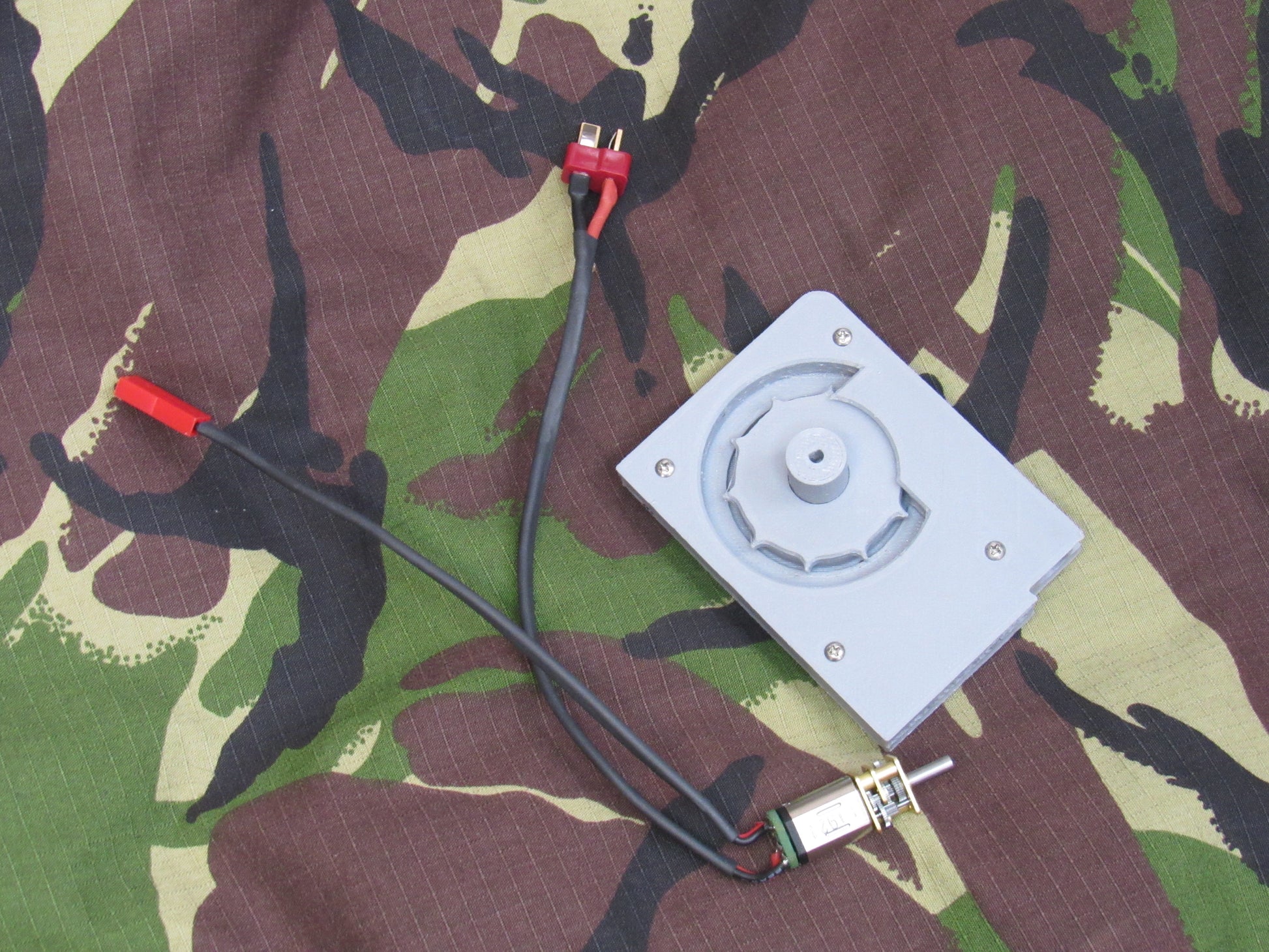

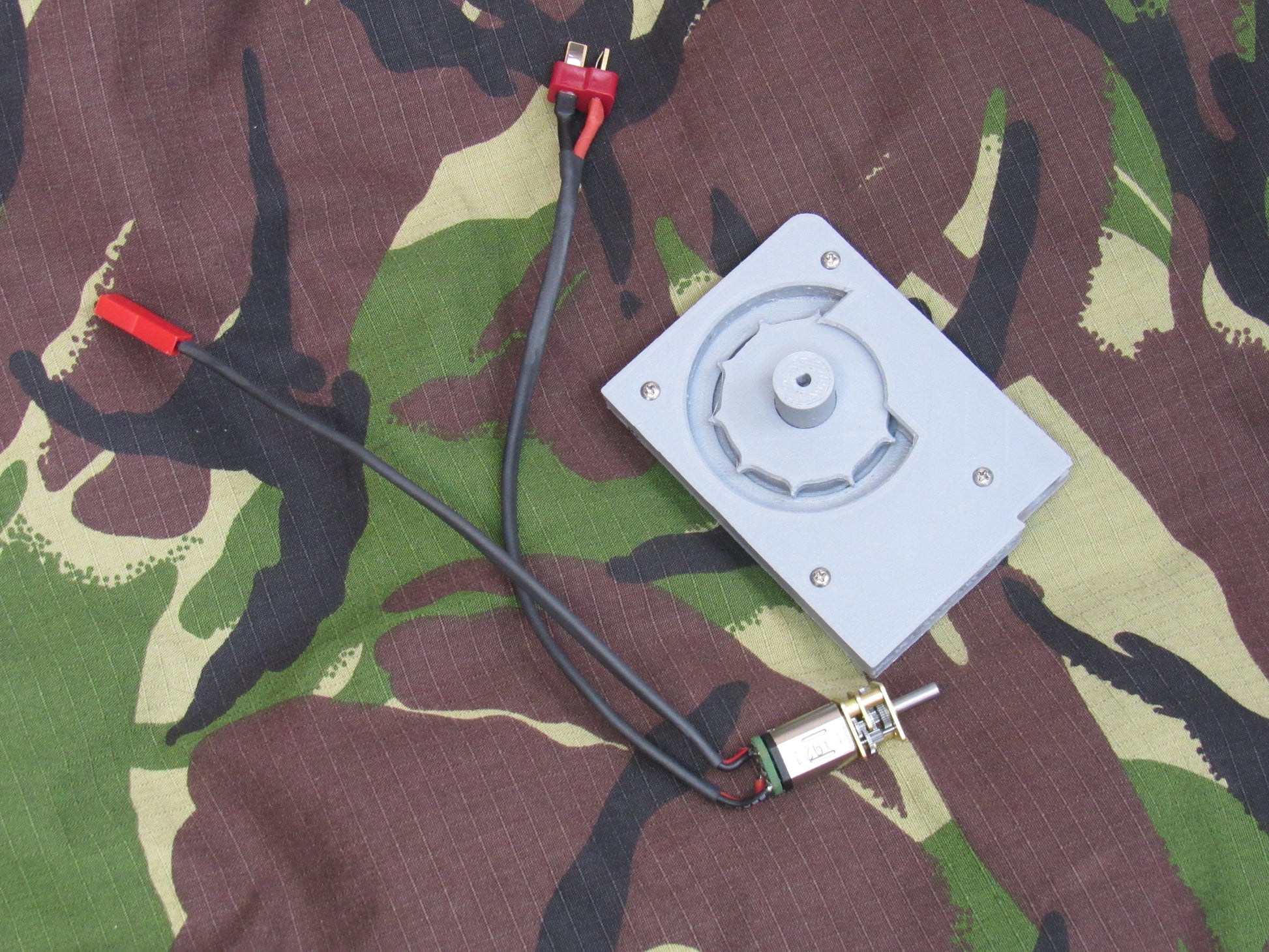

Every single one of the Kiwi Milsim inserts or boxes are designed to be used with this in-house made feed mechanism. Generally based on the MAG loading device, this kit is a step up in design reliability and performance. With a body made of PETG filament, combined with a in-house designed and printed feed wheel and powered by a quality 160 RPM 6-12v micro-gear motor (max RPM at 12V, RPM lowers as voltage lowers), this kit is capable of up to 53 rounds per second (theoretically). Wired to a 15cm (6”) male JST connector, it is designed for use with the Kiwi Milsim Fabrications Pressure Pad but can be easily adapted by the end user to whatever type of switch desired. For power, there is an 18cm (7") lead wired to a male deans/T-connector to accept common airsoft batteries.

In the event of a full box mag failure, there is no other option to keep in you the fight than by having a spare feed mechanism on hand. With minimal tools you will be able to switch out a failed feed mechanism for a fresh set in the staging area or even mid-firefight (ask me how I know).

NOTE: Each box magazine (complete or kit) already includes a feed mechanism. This listing is in case you want a backup unit or are designing your own box.
