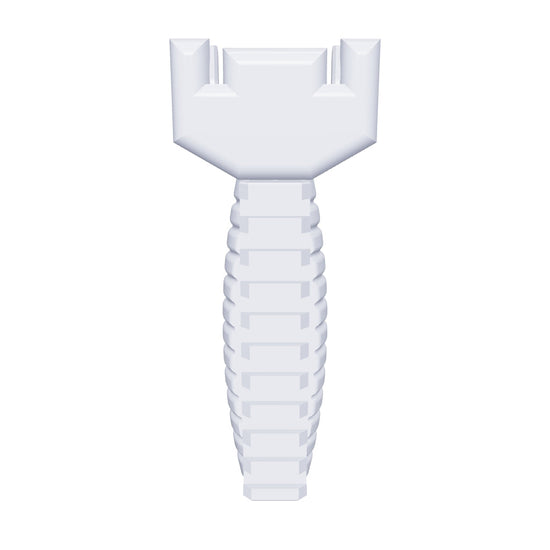

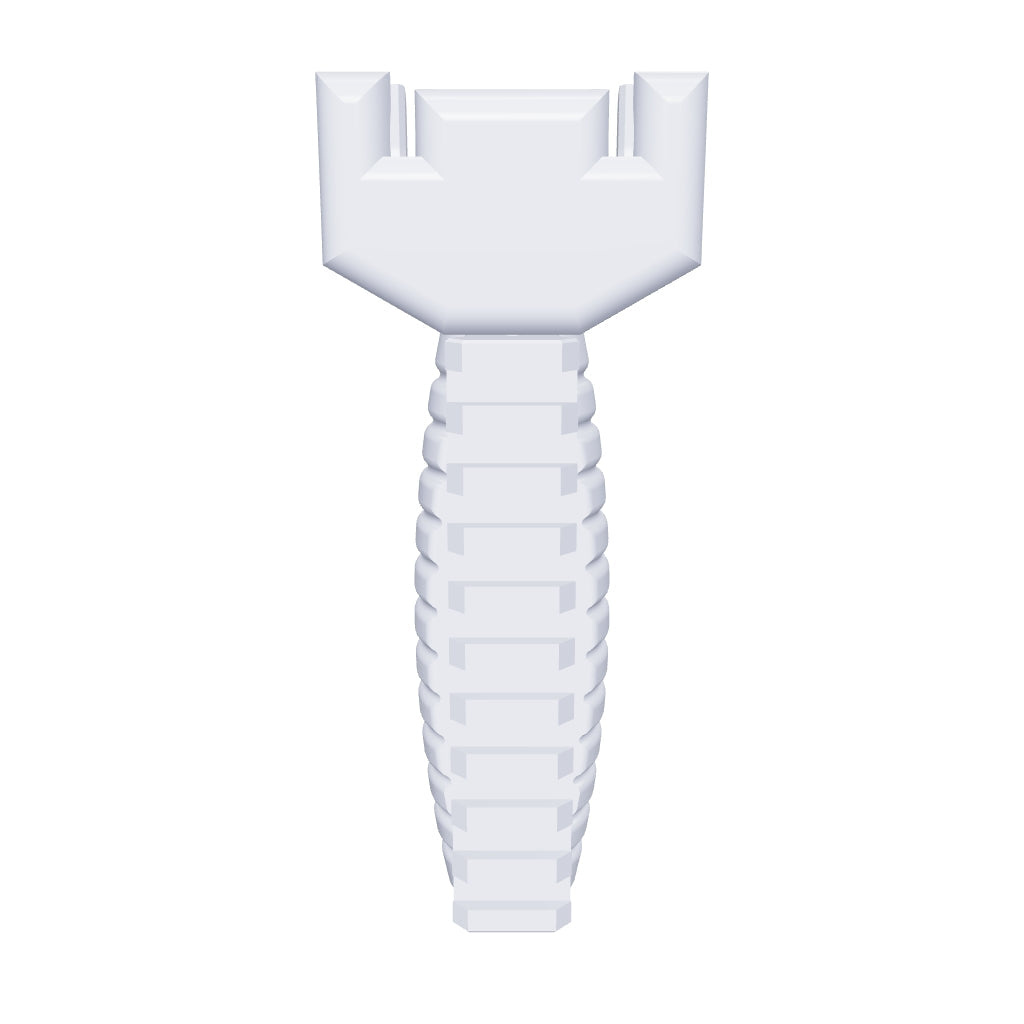

Kiwi Milsim - M240 Forward Grip - STL File

Use the vehicle mounting point as an way to have a sturdy vertical grip when using the platform from a standing or crouched position. Integrated a rail on the front to allow for rail mounted pressure pads for box mag or light/lasers. Fully modular to allow centered, or left or right cant, and 7 position around its axis of rotation. Recommend printing with PETG or stronger.

*ASSEMBLY REQUIRED*

Parts this required to fully fabricate this item:

QTY 7 - Heat-Set Brass, M3 x 0.5 mm, 5.7 mm / https://www.mcmaster.com/94459A140/

QTY 7 - Button Head Hex Drive Screw, Black-Oxide Alloy Steel, M3 x 0.50 mm Thread, 14 mm Long / https://www.mcmaster.com/91239A118/

QTY 1 - Heat-Set Inserts for Plastic, Brass, M5 x 0.8 mm, 9.5 mm Installed Length / https://www.mcmaster.com/94459A170/

QTY 1 - Button Head Hex Drive Screw, Black-Oxide Alloy Steel, M5 x 0.80 mm Thread, 20 mm Long / https://www.mcmaster.com/91239A233/

QTY 1 - High-Strength Steel Nylon-Insert Locknut, Black-Oxide, 1/2"-13 Thread Size / https://www.mcmaster.com/97135A423/

QTY 1 - Black-Oxide Alloy Steel Socket Head Screw, 1/2"-13 Thread Size, 2-3/4" Long, Partially Threaded / https://www.mcmaster.com/91251A723/

6 inches - 1/8 in. x 36 in. Plain Steel Cold Rolled Round Rod / https://www.mcmaster.com/8920k643/
